Project Overview

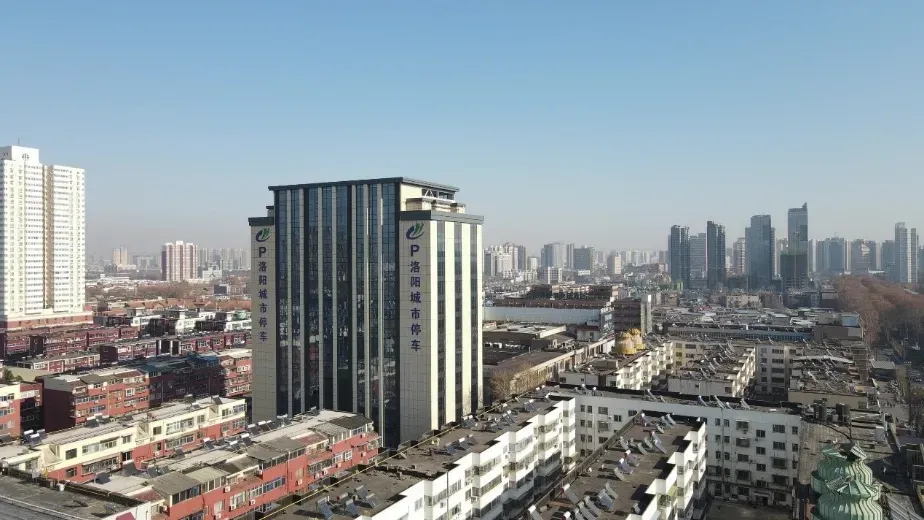

The Luoyang Urban Parking Building is located in the core commercial district of Luoyang City—Shanghai Market area. Surrounded by roads on all sides, it exemplifies urban function upgrades and high-efficiency land utilization. As the city's first 16-story vertical parking building, it has a total construction area of 17,559.26㎡, with one underground floor and 16 above-ground floors, reaching a total height of 65.4 meters. Our company provided complete steel structure design, fabrication, and installation services.

The Sanjian Meichen design team integrated modern parking concepts with steel structure technology and innovatively adopted a Q355B welded box column and beam system. Equipped with 6 sets of high-speed intelligent elevators, the project accommodates 300 smart parking spaces—ten times more than the original 30-car capacity—effectively easing parking pressure in the area.

Key Data

• Building Type: High-rise public building

• Structural System: Steel frame + bracing system

• Steel Consumption: Approx. 1,700 tons

• Construction Period: 240 days

• Total Floor Area: 17,559.26㎡

• Basement Area: 1,161.23㎡

• Above-ground Area (16 floors): 16,398.03㎡

• Site Area: 1,091.78㎡

• Floor Heights: B1: 4.9m; 1F–2F: 5.4m; Standard Floors: 3.9m

Project Highlights

1. Innovative Structural System
   Steel frame + bracing structure with welded box columns and H-beams (Q355B), ensuring seismic resistance and fire protection, compliant with seismic intensity 7 and fire protection level I.

2. Intelligent & Efficient

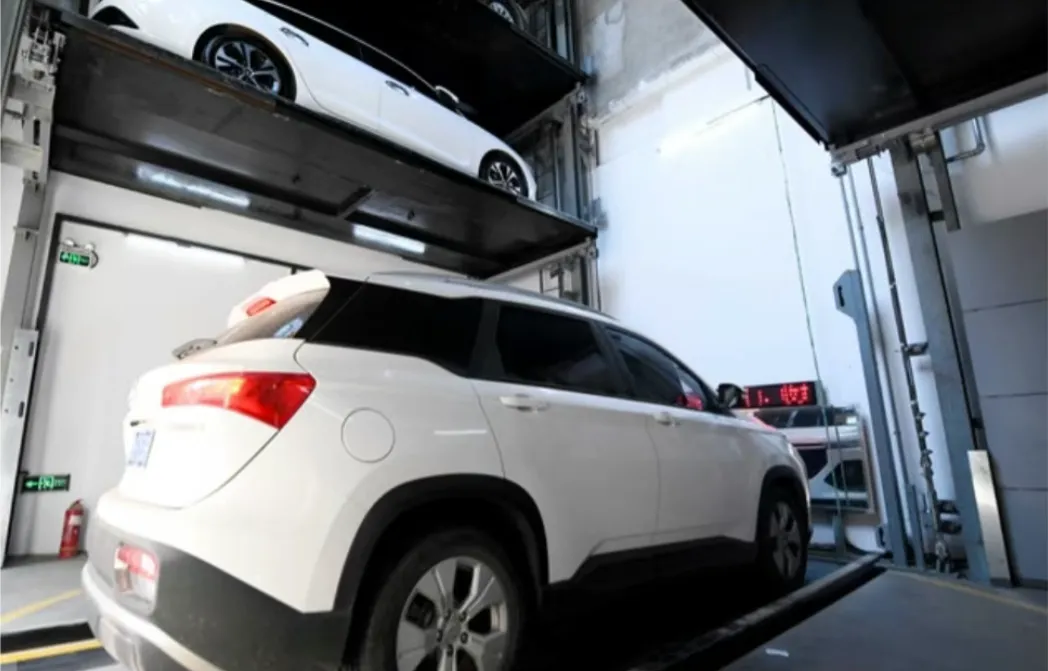

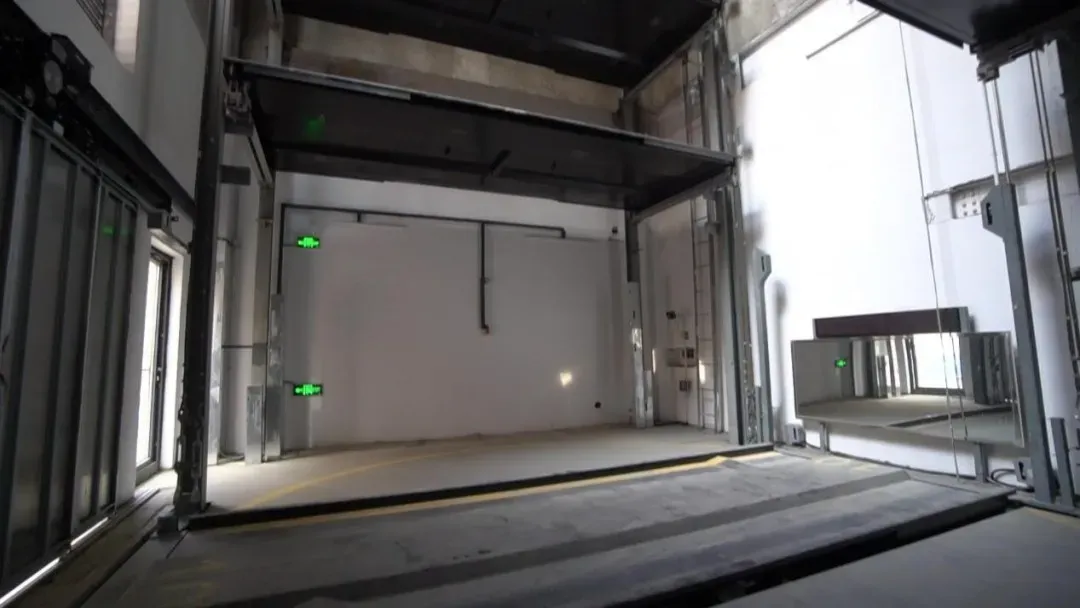

   6 sets of high-speed intelligent lifts enable unmanned operation, achieving high-density, high-efficiency, low-energy parking.

3. Efficient Construction

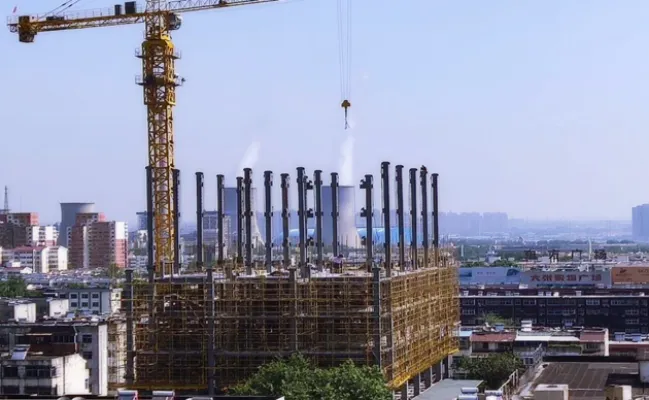

   Factory prefabrication + modular installation. Components undergo CNC cutting, submerged arc welding, shot blasting (Sa2.5), and coating for quality and anti-corrosion.

4. Durability & Safety

• Roofing waterproof grade: Level I

• Basement waterproof grade: Level I

• Complete fireproof coating system improves service life and safety.

Project Significance

This project not only enhances urban transportation infrastructure but also represents modern steel structure high-rise applications in urban renewal and land use efficiency, setting a new benchmark for smart city development.

About Henan Sanjian Meichen Construction Technology Co., Ltd.

Founded in 1999, we are a certified Grade I steel structure contractor with over 20 years of industry expertise. We offer high-quality customized steel solutions for industrial, logistics, commercial, and high-rise buildings, combining precision design, quality fabrication, efficient installation, and reliable delivery.
