Load-Bearing Capacity of Steel Structures: Engineering Explained

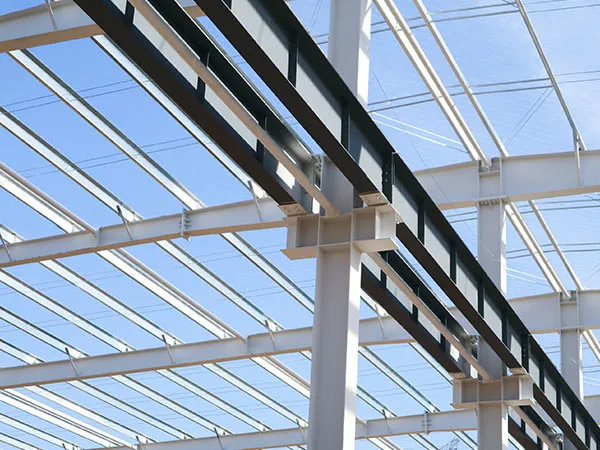

Steel structures form the backbone of modern infrastructure, from high-rise buildings to industrial bridges. Understanding load-bearing capacity is critical for engineers, architects, and project owners who must ensure safety, longevity, and cost-efficiency. This article breaks down the engineering principles behind steel structure load capacity, including material behavior, design factors, and real-world applications. Whether you're specifying a new project or evaluating existing construction, the insights here will help you make informed decisions—and show how partners like MeiChen Steel deliver reliable solutions.

Fundamentals of Load-Bearing Capacity in Steel Structures

The load-bearing capacity of a steel structure is its maximum ability to resist applied forces without failure. This depends on three core elements: material strength, cross-sectional geometry, and structural stability. Steel is favored for its high strength-to-weight ratio, ductility, and uniformity compared to concrete or timber.

Stress and Strain: The Building Blocks

When a load is applied, steel experiences stress (force per unit area) and strain (deformation). The yield point—where steel begins to deform permanently—is a key design limit. For most structural steel grades like ASTM A36 or A992, yield strength ranges from 250 MPa to 345 MPa. Engineers design structures to remain below this limit under service loads, ensuring elastic behavior.

Cross-Section and Section Modulus

The shape of a steel member dramatically affects its load capacity. An I-beam, for example, has a high section modulus, meaning it resists bending efficiently. A wider flange increases stiffness without proportional weight gain. The section modulus (S) and moment of inertia (I) are calculated from geometry and used in bending stress formulas: σ = M / S.

Key Factors Affecting Load-Bearing Capacity

Several interrelated factors determine the final capacity of a steel structure. Ignoring any can lead to underperformance or failure.

• Steel Grade and Material Properties: Higher yield strength (e.g., 420 MPa vs. 250 MPa) allows thinner sections, but may reduce ductility. Choose a grade that matches your load and seismic requirements.
• Cross-sectional Geometry: Wide-flange shapes, hollow structural sections (HSS), and built-up plate girders each offer different capacities for axial, bending, and torsional loads.
• Connection Design: Bolted or welded connections must transfer forces without local failure. Connection details often govern the ultimate capacity of a truss or frame.
• Bracing and Stability: Buckling—both local (flange/web) and global (flexural-torsional) —can reduce capacity drastically. Proper bracing and stiffeners are mandatory.
• Loading Conditions: Dead loads (self-weight), live loads (occupancy), wind, snow, and seismic forces combine. Load combinations are codified in standards like ASCE 7 or EN 1990.

Engineering Calculations and Safety Factors

Design codes (AISC 360, Eurocode 3) use load and resistance factor design (LRFD) or allowable strength design (ASD). In LRFD, factored loads are compared with nominal strength reduced by a resistance factor (e.g., φ = 0.9 for bending). This accounts for material variability, modeling uncertainties, and construction tolerances.

A typical design sequence: 1) Determine required strength from load combinations. 2) Select trial member. 3) Check axial capacity (P_n), flexural capacity (M_n), shear capacity (V_n). 4) Verify combined stresses (biaxial bending + axial). 5) Check deflection serviceability (L/360 or tighter for sensitive structures).

For example, a W10x49 column in A992 steel (F_y = 345 MPa) with unbraced length 3 meters may have an axial capacity of approximately 1,800 kN in LRFD, considering slenderness ratio and buckling curve. Actual values require detailed computation—never rely on rules of thumb alone.

How to Ensure Maximum Load-Bearing Capacity in Your Project

Beyond theoretical calculations, practical execution determines real-world performance.

• Specify Certified Steel: Always use material with mill test reports verifying grade, yield, tensile strength, and elongation. MeiChen Steel provides full traceability for all carbon and high-strength steel products.
• Insist on Quality Fabrication: Connection detailing, welding procedures (WPS), and NDT inspection prevent weak points. Poor workmanship can lower capacity by 20% or more.
• Consider Future Load Changes: Design with some reserve for potential renovations or increased occupancy. Overloading a structure designed to exact limits is dangerous.
• Partner with Experienced Suppliers: A reliable steel supplier like MeiChen Steel not only delivers material but also offers technical guidance on grade selection, stock availability, and custom cutting.

In one recent project, a client required columns for a high-bay warehouse with a target axial load of 2,500 kN. MeiChen Steel supplied A572 Grade 60 wide-flange sections with enhanced yield and tight tolerances, helping engineers achieve the required capacity without oversizing—saving both material cost and construction time.

Conclusion: Why Load-Bearing Capacity Demands Expert Attention

Understanding load-bearing capacity is not just academic—it directly impacts safety, budget, and schedule. From steel grade selection to buckling resistance and connection design, every decision must be grounded in engineering principle and code compliance. By working with a knowledgeable partner like MeiChen Steel, you gain access to high-quality structural steel and the expertise to apply it correctly. For your next project, start with a clear specification and a supplier who understands the science behind the strength.
